Ephemeris: 06/28/2024 – Solar viewing at Sleeping Bear Dunes tomorrow

June 28, 2024 Comments off

This is Ephemeris for Friday, June 28th. Today the Sun will be up for 15 hours and 32 minutes, setting at 9:32, and it will rise tomorrow at 6:00. The Moon, at last quarter today, will rise at 1:37 tomorrow morning.

Tomorrow, Saturday, June 29th there will be solar viewing at the Sleeping Bear Dunes National Lakeshore, at the Dune Climb from 3 to 6 PM. Park Rangers will be joined by members of the Grand Traverse Astronomical Society with their specially filtered telescopes to view the Sun safely. This is a period of great solar activity. Remember the Aurora Borealis of a few weeks ago. Solar filtered telescopes will safely view the surface of the sun, called the photosphere and sunspots, while the society also has two special solar telescopes with which to view the layer of gas above the surface called the chromosphere and prominences which look like flames coming off the chromosphere. This is one of two solar observing opportunities this summer.

The astronomical event times given are for the Traverse City/Interlochen area of Michigan (EDT, UT–4 hours). They may be different for your location.

Addendum

The white light Sun
The white light Sun as of Thursday gives us a preview of what it will look like on Saturday. Most solar telescopes we use will give a mirror image. The sunspots will move and change from Thursday’s appearance, seen here. White light filters generally give the Sun an orange hue. It’s really white. Credit: NASA/Solar Dynamics Observatory.
The Sun in the light of hydrogen
The Sun in the light of hydrogen taken late Thursday our time (11:16 pm). The color is truly red in this photograph and in our hydrogen alpha solar telescopes. The alpha radiation of hydrogen is in the red part of the spectrum. What we are looking at is the chromosphere was a which is a layer of gas above the photosphere, which is the bright ball of the Sun that we see through white light telescopes. It gives us a very different view of the Sun which is much less smooth and with a lot of detail. The dark clouds over the photosphere are called filaments and if they were at the edge of the Sun we’d see them as bright features called prominences, though dimmer than the chromosphere which is why they appear dark when silhouetted over the chromosphere. The bright areas are called pledges and are magnetically active areas as are the sunspots. These are areas which may produce sunspots later. The chromosphere changes a lot more than the white light Sun and its sunspots. Credit: NISP / Learmouth, Australia.

Ephemeris: 06/27/2024 – Why do astronomers think a nova will appear this year?

June 27, 2024 Comments off

This is Ephemeris for Thursday, June 27th. Today the Sun will be up for 15 hours and 33 minutes, setting at 9:32, and it will rise tomorrow at 5:59. The Moon, 1 day before last quarter, will rise at 1:18 tomorrow morning.

Our expected nova this year, T Coronae Borealis, is expected by some astronomers to erupt sometime in September give or take, but nobody knows for sure. The last eruption was seen in 1946. And if the average time between outbursts is 80 years, it seems to be two years early this time. In 1946 there were observations showing that there were some precursor effects going on before the eruption, and those have been noticed this time too, which is which why we assume that the nova will occur this year. Stars that vary in brightness are denoted in a constellation by a letter starting with R through Z, then RR, RS, etcetera through ZZ. After that it’s V and a number plus the constellation name or abbreviation.

The astronomical event times given are for the Traverse City/Interlochen area of Michigan (EDT, UT–4 hours). They may be different for your location.

Addendum

T Coronae Borealis Finder Chart
This animated GIF shows the constellations of Hercules, Corona Borealis and Boötes from left to right. Flashing on and off is T Coronae Borealis (T CrB). It is shown at its approximate maximum brightness, about the same as Alphecca (spelled Alphekka here). Created using Stellarium and GIMP.

Ephemeris: 06/26/2024 – Where are the naked-eye planets this week?

June 26, 2024 Comments off

This is Bob Moler with Ephemeris for Wednesday, June 26th. Today the Sun will be up for 15 hours and 33 minutes, setting at 9:32, and it will rise tomorrow at 5:59. The Moon, 2 days before last quarter, will rise at 12:58 tomorrow morning.

Let’s find out where the naked-eye planets have wandered off to this week. Venus and Mercury are too close to the direction of the Sun to be seen. Both are on the evening side of the Sun, but lost in its glare. Venus will appear in the evening sky next month. By 5:15 tomorrow morning, or about 45 minutes before sunrise, Saturn will be in the southeast just above and left of the Moon, and Mars will be lower in the east, and Jupiter will be very low in the east-northeast. Saturn will be a bit dimmer this year and next due to its rings being nearly edge on to us and not reflecting as much light. Saturn will rise at 1:15 am, Mars at 3:07 am, and Jupiter at 4:19 am.

The astronomical event times given are for the Traverse City/Interlochen area of Michigan (EDT, UT–4 hours). They may be different for your location.

Addendum

The Moon as it might appear in binoculars or a small telescope at 5 AM tomorrow morning, June 27th 2024. Selected features are labeled. Created using Stellarium, LibreOffice Draw, and GIMP.

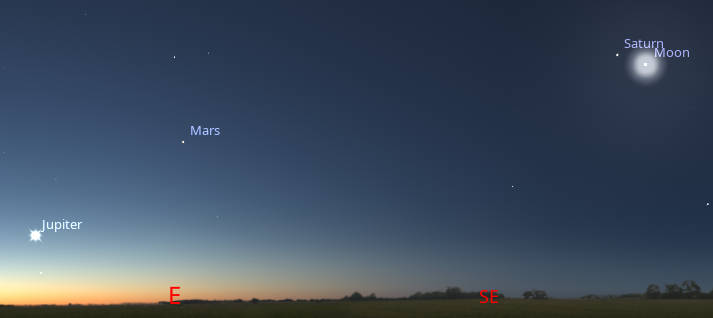

The Moon, Saturn, Mars and Jupiter as they might be seen low in the east and southeastern sky at 5:15 AM, or about 45 minutes before sunrise, tomorrow morning June 27, 2024. Saturn will rise at 1:03 AM, Mars at 2:59 AM, and Jupiter at 4:09 AM. Click or tap on the image to enlarge it. Created using Stellarium.

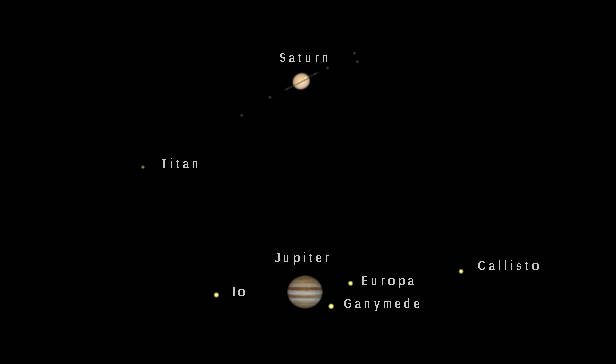

Telescopic Saturn and Jupiter (north up) as they would be seen in a small telescope at 5 AM June 27th 2024 with the same magnification. Apparent diameters: Saturn 17.8″, its rings 41.4″; Mars, too small to be represented here, is 5.3″; Jupiter 33.5″. Note the ” means seconds of arc, or 1/3600th of a degree. Created using Cartes du Ciel (Sky Charts).

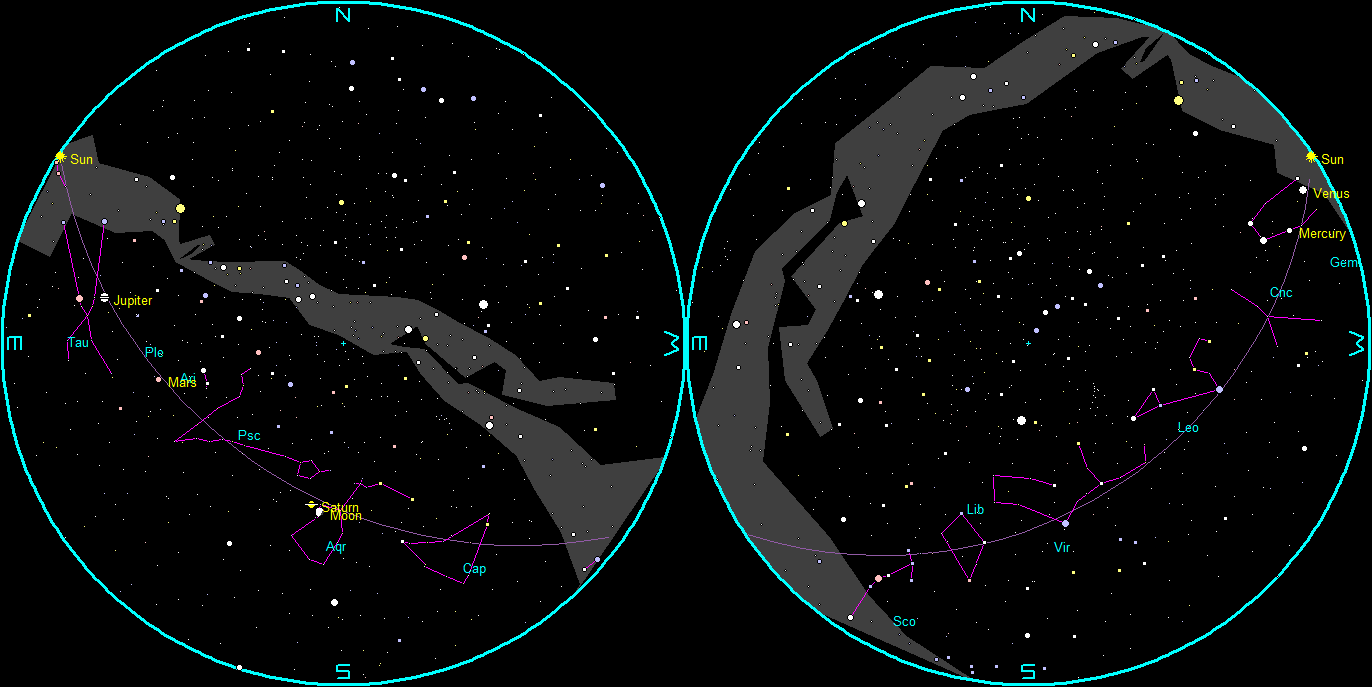

The naked-eye planets and the Moon at sunset and sunrise on a single night, starting with sunset on the right on June 26, 2023. The night ends on the left with sunrise on the 27th. Click or tap on the image to enlarge it. Created using my LookingUp app and GIMP.

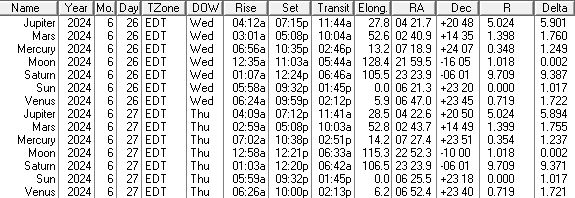

This is an ephemeris of the Sun Moon and naked eye planet positions for today and tomorrow, June 26th and 27th 2024. Some of the columns are self-explanatory, others not. The transit column is the time that the body crosses the meridian and is due south. Elong, for elongation, is the angle between the Sun and that body. RA is right ascension, which is the object’s east-west position on the celestial sphere. Dec is declination which is the north-south position of the object on the celestial sphere. R is the distance of that object from the Sun in astronomical units. An astronomical unit is about 93 million miles or 150 million kilometers. And Delta is the distance of that object from the Earth, also in astronomical units. I omit the ‘m’ in am and pm for compactness. The data was generated using my LookingUp for DOS app and displayed by my Ephemeris Helper app.

Ephemeris: 06/25/2024 – Three kinds of novas

June 25, 2024 Comments off

This is Ephemeris for Tuesday, June 25th. Today the Sun will be up for 15 hours and 33 minutes, setting at 9:32, and it will rise tomorrow at 5:58. The Moon, 3 days before last quarter, will rise at 12:35 tomorrow morning.

As I mentioned yesterday we’re expecting a nova or bright star that we expect to appear sometime this year, maybe in September according to some astronomers. A nova is a rapid brightening of a star due to some cataclysmic event happening to it. There are three kinds that we actually know of. A nova, which is what we’re expecting; a supernova, an explosion maybe a million times greater; and the recently discovered kilonova when two neutron stars collide, which is a thousand or so times brighter than an ordinary nova. A nova and one kind of supernova (Type 1) involve a binary star system which contains a white dwarf star near the end of its life close enough to a larger star to siphon off material. At some point enough has built up and an explosion occurs.

The astronomical event times given are for the Traverse City/Interlochen area of Michigan (EDT, UT–4 hours). They may be different for your location.

Addendum

The second type of Supernova is caused when a supermassive star’s core collapses when it’s made of iron and tries to fuse it into heaver elements. That process takes energy rather than producing it. Oops! The star collapses on itself, and… Kablooey!

Nova in a binary system


A red giant star and white dwarf orbit each other in this animation of a nova similar to T Coronae Borealis. The red giant is a large sphere in shades of red, orange, and white, with the side facing the white dwarf the lightest shades. The white dwarf is hidden in a bright glow of white and yellows, which represent an accretion disk around the star. A stream of material, shown as a diffuse cloud of red, flows from the red giant to the white dwarf. When the red giant moves behind the white dwarf, a nova explosion on the white dwarf ignites, creating a ball of ejected nova material shown in pale orange. After the fog of material clears, a small white spot remains, indicating that the white dwarf has survived the explosion. NASA/Goddard Space Flight Center
.

Ephemeris: 06/24/2024 – Waiting for a bright nova*

June 24, 2024 Comments off

This is Ephemeris for Monday, June 24th. Today the Sun will be up for 15 hours and 34 minutes, setting at 9:32, and it will rise tomorrow at 5:58. The Moon, 3 days past full, will rise at 12:09 tomorrow morning.

The small constellation of Corona Borealis, or Northern Crown appears about a third of the way between the bright star Arcturus, high in the south and the star Vega in the east. It is a small semicircle of stars with the brighter star called Alphecca near the center of the arc of stars. Sometime this year, we hope, another bright star will appear there. A nova of a dim star brightening about 1,600 times normal near that circle of stars. It has done it before. It has the designation of T Coronae Borealis (T CrB for short), and is a recurrent nova of a white dwarf star that suffers an explosion about once every 80 years. So this year we need to be looking out for that stellar explosion, which will be bright for only a few days, so one must be vigilant to spot it.

The astronomical event times given are for the Traverse City/Interlochen area of Michigan (EDT, UT–4 hours). They may be different for your location.

* The word ‘nova’ comes from the Latin Nova Stella, meaning New Star.

Addendum

Finding Corona Borealis
Putting Corona Borealis in context with the Big Dipper, to the upper right, looking overhead while facing south, at 11 pm in late June. Created using Stellarium and GIMP.
Showing the location of T Coronae Borealis
This animated GIF shows the constellations of Hercules, Corona Borealis and Boötes from left to right. Flashing on and off is T Coronae Borealis (T CrB). It is shown at its approximate maximum brightness, about the same as Alphecca (spelled Alphekka here). Created using Stellarium and GIMP.
Light curve for Nova Cygni 1975 (V1500 Cyg) which burst forth in the constellation of Cygnus the Swan in August of 1975, just two months after the beginning of the Ephemeris program. There hasn’t been a brighter one since. Notice the initial sharp rise and initial decline. Magnitudes (Mag on the vertical axis) work like golf scores or prizes, the brighter the star the lower the magnitude number. The dimmest star visible to the naked eye is about 6th magnitude. You can blame Hipparchus for that numbering scheme.

NASA has post about T CrB here: https://www.nasa.gov/centers-and-facilities/marshall/nasa-global-astronomers-await-rare-nova-explosion/

Ephemeris: 06/21/2024 – Saturn’s rings are almost edge-on this year

June 21, 2024 Comments off

This is Ephemeris for Friday, June 21st. Today the Sun will be up for 15 hours and 34 minutes, setting at 9:32, and it will rise tomorrow at 5:57. The Moon, at full today, will rise at 9:57 this evening.

Saturn’s rings change their aspect or their tilt to us over a period of nearly 30 years, the time it takes Saturn to orbit the Sun. Saturn has an axial tilt like the Earth does in its case it is 27° compared to the Earth’s 23 1/2 degrees. So as Saturn moves around the Sun and us we see those rings at different tilts to us. Currently, the angle of the rings to us is nearing zero degrees, meaning that they are going edge on to us. And being perhaps less than 100 meters thick, they will disappear entirely in telescopes from the Earth. That will happen on March 23rd next year. However, they will not go edge on to the Sun until May 6th. So between March 23rd and May 6th we will be we will be looking at the unlit or dark side of the rings. Since we’re not at in line with the Sun and Saturn, the Sun will still be illuminating the rings slightly, but we will be looking at the dark side of the rings.

The astronomical event times given are for the Traverse City/Interlochen area of Michigan (EDT, UT–4 hours). They may be different for your location.

Addendum

Saturn's rings change.
How the appearance of the rings change as Saturn orbits the Sun. Credit: NASA Hubble.

Ephemeris: 06/20/2024 – Summer starts this afternoon

June 20, 2024 Comments off

This is Ephemeris for Thursday, June 20th. Today the Sun will be up for 15 hours and 34 minutes, setting at 9:31, and it will rise tomorrow at 5:57. The Moon, 1 day before full, will set at 4:59 tomorrow morning.

Well, this is it, the summer solstice! Summer will begin at 4:51 this afternoon. In the Southern Hemisphere the season of winter will begin, and the South Pole of the Earth in the middle of its six months of darkness. Maybe we should call it the June solstice, because winter also begins in the Southern Hemisphere. The north above 66 ½ degrees north latitude is the land of the midnight Sun. Over summer that line will creep northward as the Sun heads southward. The seasons are caused by the tilt of the Earth’s axis, not by the Earth’s change in distance from the Sun. In fact, we are approaching our farthest distance from the Sun, of about 94.5 million miles (152 million kilometers) on July 5th, called aphelion. The greater than normal distance makes summer the longest season at 93.7 days, winter being the shortest at 89 days. The Sun will be at its highest, of just under 69 degrees altitude at 1:44 pm for the Interlochen/Traverse City area, and about a degree lower than that in the Straits area, though their daylight hours will be 12 minutes longer.

The astronomical event times given are for the Traverse City/Interlochen area of Michigan (EDT, UT–4 hours). They may be different for your location.

Addendum

Solstices
Comparing the Sun’s path at the summer and winter solstices in Traverse City, MI, US. This is a stereographic representation of the whole sky which distorts the sky and magnifies the size of the Sun’s path near the horizon. Created using my LookingUp app and GIMP.

Ephemeris: 06/19/2024 – Where have the naked-eye planets wandered off to this week?

June 19, 2024 Comments off

This is Ephemeris for Juneteenth, Wednesday, June 19th. Today the Sun will be up for 15 hours and 34 minutes, setting at 9:31, and it will rise tomorrow at 5:57. The Moon, 2 days before full, will set at 4:15 tomorrow morning.
Let’s find out where the naked-eye planets have wandered off to this week, and see what planets are left. Venus and Mercury are too close to the direction of the Sun to be seen. Both are on the evening side of the Sun, but lost in its glare. It will appear in the evening sky next month. By 5:15 tomorrow morning, or about 45 minutes before sunrise, Saturn will be in the southeast and Mars will be lower in the east, and Jupiter will be very low in the east-northeast. In telescopes, Saturn will look fairly different this year and next with its rings nearly edge on to us. Saturn will rise at 1:35 am, Mars at 3:19 am, and Jupiter, making its first morning appearance, will rise at 4:38 am.

The astronomical event times given are for the Traverse City/Interlochen area of Michigan (EDT, UT–4 hours). They may be different for your location.

Addendum

The Moon as it might appear in binoculars or a small telescope tonight
The Moon as it might appear in binoculars or a small telescope at 11 PM tonight, June 19th 2024. Selected features are labeled. Created using Stellarium, LibreOffice Draw, and GIMP.

Translations of some lunar feature names according to Virtual Moon Atlas

Lacus Mortis – Lake of Death
Lacus Somniorum – Lake of Dreams
Mare Cognitum – Sea of Knowledge
Mare Crisium – Sea of Crises
Mare Fecunditatis – Sea of Fruitfulness
Mare Frigoris – Sea of Cold
Mare Humorum – Sea of Moisture
Mare Imbrium – Sea of Showers
Mare Nectaris – Sea of Nectar
Mare Nubium – Sea of Clouds
Mare Serenitatis – Sea of Serenity
Mare Tranquillitatis – Sea of Tranquility
Mare Vaporum – Sea of Vapors
Montes Alpes – Alps Mountains
Montes Apenninus – Apennines Mountains
Oceanus Procellarum – Ocean of Storms
Sinus Iridium – Bay of Rainbows
Sinus Medii – Central Bay
Sinus Roris – Bay of Moisture

Craters are named for persons, real or otherwise.

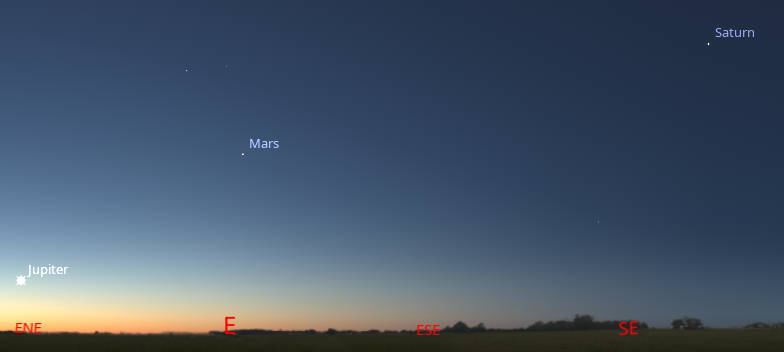

Saturn, Mars and Jupiter as they might be seen low in the east and southeastern sky about 45 minutes before sunrise, tomorrow morning
Saturn, Mars and Jupiter as they might be seen low in the east and southeastern sky at 5:15 AM, or about 45 minutes before sunrise, tomorrow morning June 20, 2024. Saturn will rise at 1:31 AM, Mars at 3:14 AM, and Jupiter at 4:31 AM. Click or tap on the image to enlarge it. Created using Stellarium.
Telescopic Saturn and Jupiter

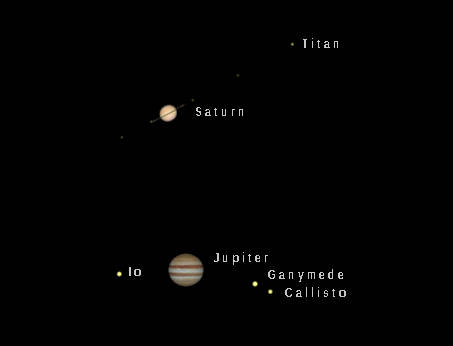

Telescopic Saturn and Jupiter (north up) as they would be seen in a small telescope at 5 AM June 20th 2024 with the same magnification. Apparent diameters: Saturn 17.57″, its rings 40.95″; Mars, too small to be represented here, is 5.25″; Jupiter 33.20″. Note the ” means seconds of arc, or 1/3600th of a degree. Created using Cartes du Ciel (Sky Charts).
Telescopic Saturn and Jupiter

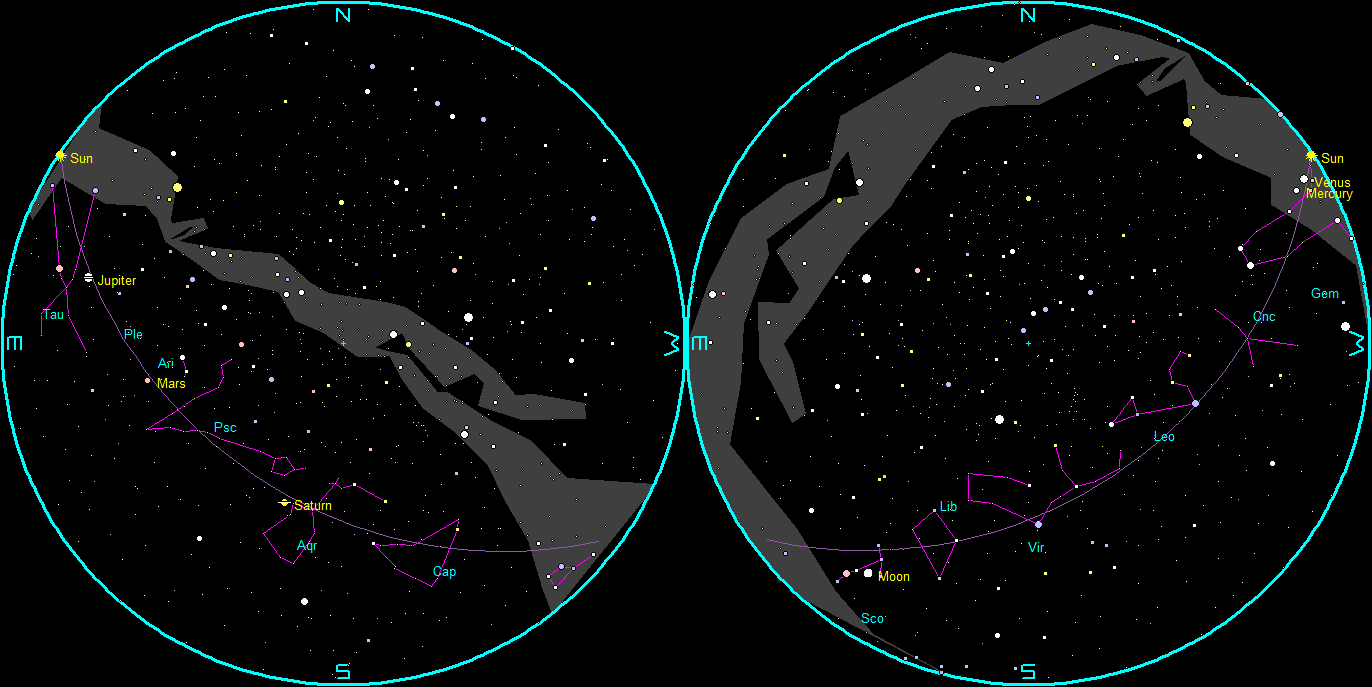

The naked-eye planets and the Moon at sunset and sunrise on a single night, starting with sunset on the right on June 19, 2023. The night ends on the left with sunrise on the 20th. Click or tap on the image to enlarge it. Created using my LookingUp app and GIMP.

Ephemeris: 06/18/2024 – Are we in a space race with China?

June 18, 2024 Comments off

This is Ephemeris for Tuesday, June 18th. Today the Sun will be up for 15 hours and 34 minutes, setting at 9:31, and it will rise tomorrow at 5:56. The Moon, 3 days before full, will set at 3:41 tomorrow morning.

Back in the late 1950s and early 1960s The United States and Russia were in a space race, attempting to outdo each other in space. The Russians had the lead to begin with. Their rockets were bigger because they were unable to miniaturize their atomic weapons. So they needed rockets large enough to launch them, and had rockets large enough, off the shelf so to speak, to be able to launch satellites and even humans into orbit. Sixty years later the old Soviet Union has disappeared and Russia is still using rocket technology that was developed in the 1960s. The Chinese however, were nowhere in the 1960s, and have now ascended to be our number one competitor in space. Considering their latest progress, China may beat us back to the Moon.

The astronomical event times given are for the Traverse City/Interlochen area of Michigan (EDT, UT–4 hours). They may be different for your location.

Addendum

The Chinese Chang'e 6 the sample collection spacecraft
The Chinese Chang’e 6 the sample collection spacecraft with the sample collection arm, taken by a minirover that was ejected out of the spacecraft is it landed in the Apollo crater on the far side of the Moon . © CNSA (China National Space Administration).

Ephemeris: 06/17/2024 – China’s mission to get samples from the far side of the Moon

June 17, 2024 Comments off

This is Ephemeris for Monday, June 17th. Today the Sun will be up for 15 hours and 34 minutes, setting at 9:31, and it will rise tomorrow at 5:56. The Moon, 3 days past first quarter, will set at 3:16 tomorrow morning.

Earlier this month the People’s Republic of China’s Chang’e 6 spacecraft landed on the far side of the Moon to collect samples to return them to the Earth. They had put a satellite in orbit of the moon to act as a relay satellite so they can communicate with their Lander. The collection went according to plan and the spacecraft is now headed back to the Earth. It is my understanding that they landed in the crater called Apollo at the edge of the Aitken basin . Being the far side of the moon the Apollo crater is not named for the Greek god but for the American human Moon program of the 1960s and early 70s. The samples are expected to return to Earth on the 25th. These are the first samples from the far side of the Moon to be returned.

The astronomical event times given are for the Traverse City/Interlochen area of Michigan (EDT, UT–4 hours). They may be different for your location.

Addendum

The far side of the Moon as shown in the Virtual Moon Atlas with my annotations. The Chang’e 6 sample return mission landed in the Apollo crater near the edge of the Aiken Basin, the largest, deepest and oldest impact structure on the Moon. The Chang’e 4 and Yutu 2, lander and rover, landed elsewhere in the Aitken Basin.
